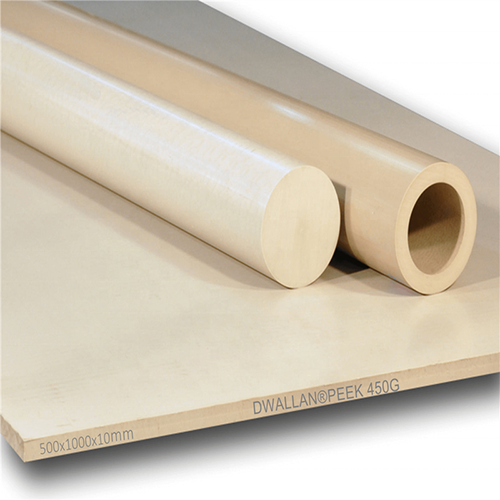

PEEK 2 PEEK 2

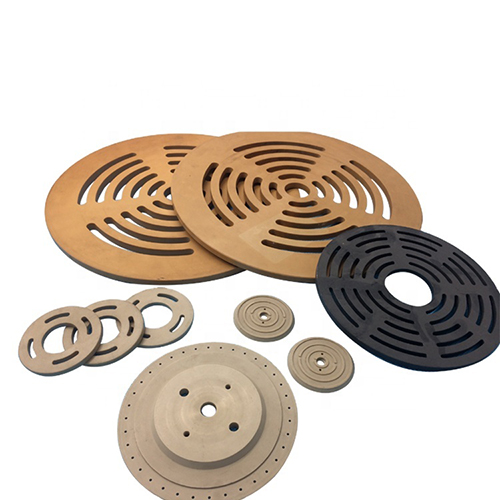

PEEK PARTS PEEK PARTS

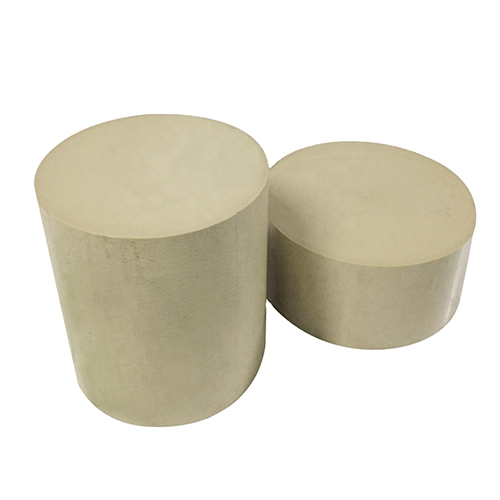

PEEK ROD 2 PEEK ROD 2

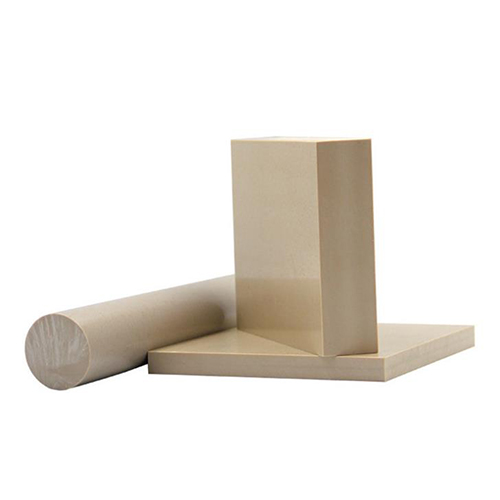

PEEK ROD PEEK ROD

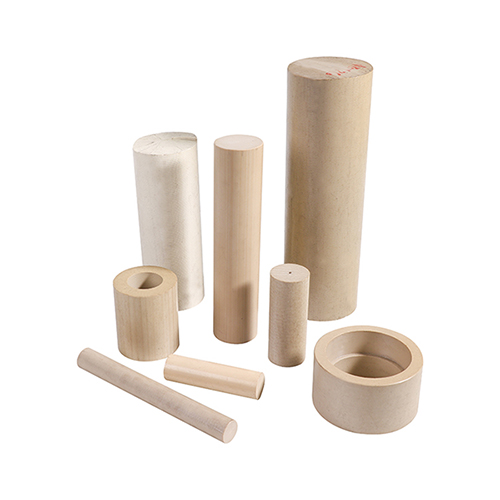

PEEK TUBE PEEK TUBE
peek 图片 peek 图片

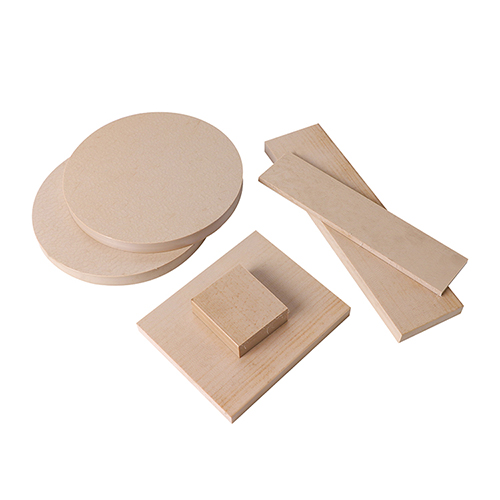

PEEK PEEK

Properties

  1. Outstanding chemical resistance
  2. Good mechanical properties at elevated temperatures
  3. Resistant to hot water and steam
  4. Bearing grade PEEK has excellent wear characteristics
  5. Good flame retardant

Applications

  1. Semiconductor machinery components
  2. Aerospace parts
  3. Seals, piston rings, valve discs
  4. Pump and valve components
  5. Bearings and bushings (bearing grade PEEK)
  6. Electrical components
  7. Medical instrument parts
  8. Food processing machinery components

Specifications

PEEK RODS
Diameter*Length(mm) Material Diameter*Length(mm) Material
φ5*1000 PEEK-1000 φ40*1000 PEEK-1000
φ6*1000 PEEK-1000 φ45*1000 PEEK-1000
φ8*1000 PEEK-1000 φ50*1000 PEEK-1000
φ10*1000 PEEK-1000 φ55*1000 PEEK-1000
φ12*1000 PEEK-1000 φ60*1000 PEEK-1000
φ15*1000 PEEK-1000 φ70*1000 PEEK-1000
φ16*1000 PEEK-1000 φ80*1000 PEEK-1000
φ18*1000 PEEK-1000 φ90*1000 PEEK-1000
φ20*1000 PEEK-1000 φ100*1000 PEEK-1000
φ22*1000 PEEK-1000 φ110*1000 PEEK-1000
φ25*1000 PEEK-1000 φ120*1000 PEEK-1000
φ28*1000 PEEK-1000 φ130*1000 PEEK-1000
φ30*1000 PEEK-1000 φ140*1000 PEEK-1000
φ35*1000 PEEK-1000 φ150*1000 PEEK-1000
PEEK  SHEETS
Thickness*Width*length(mm) Material Thickness*Width*length(mm) Material
5*610*1220 PEEK-1000 35*610*1220 PEEK-1000
6*610*1220 PEEK-1000 40*610*1220 PEEK-1000
8*610*1220 PEEK-1000 45*610*1220 PEEK-1000
10*610*1220 PEEK-1000 50*610*1220 PEEK-1000
12*610*1220 PEEK-1000 55*610*1220 PEEK-1000
15*610*1220 PEEK-1000 60*610*1220 PEEK-1000
20*610*1220 PEEK-1000 65*610*1220 PEEK-1000
25*610*1220 PEEK-1000 70*610*1220 PEEK-1000
30*610*1220 PEEK-1000 80*610*1220 PEEK-1000



Remarks

We could supply as customers’ special requirments.
